Machine Guns

7.62x54 mm MG-M1

Machine Guns

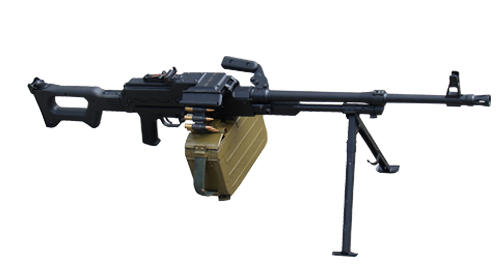

7.62x54 mm ARSENAL Machine Gun MG-M1
NSN: 1005-50-000-0717



 7.62x54 mm ARSENAL Machine Guns MG-M1 are powerful automatic weapons, used as armament against enemy troops and firing points.



Main Features:
  • Chromium plated Barrel, manufactured by the method of cold radial forging.
  • Modern design of the Flash Suppressor-Compensator.
  • Butt and Pistol grip, made of high quality and resistant glass fiber reinforced polycaproamide, not effected after heating by direct sun lights, corrosion and humidity resistance, light and firm.
  • Feeding by 100- or 200-round metal belt, put in a box.
  • The MG-M1 can be easily mounted on Arsenal Tripod TAR-MG, that provides precision and efficient fire at air and ground targets.
Optional Extras (Paid Separately):
  • Blank firing attachment - set (bushing & frame);
  • Rail for sighting devices.
Specifications
MG-M1    cal.7.62x54
Calibre, mm 7.62 Barrel length, mm 605
Cartridge, mm 7.62x54 Sight radius, mm 663
Fire mode Automatic Overall length, mm 1160
Rate of fire, rounds/min 650 Weight without ammunition box, kg 8.5
Practical rate, rounds/min 250 Weight of loaded ammunition box
Muzzle velocity, m/s 825 - with loaded 100 round metal belt, kg 3.9
Maximum firing range, m 3800 - with loaded 200 round metal belt, kg 6.5
Maximum effective firing range, m 1000 System life, rounds 25 000
Sighting range, m 1500 Principle of function Gas operated
Ammunition box capacity, rounds 100/200
ACCESSORIES
Second barrel Cleaning rod

Bag with spare parts consisting of:

  • Firing pinExtractor;
  • Extractor spring;
  • Extractor axle;
  • Pin of the Extractor axle.Box with accessories
  • 2 pcs metal belt for Extracting device for split cartridge cases 200 cartridges
    2 pcs ammunition box for metal belt for 200 cartridges
  • Sling
  • 2 pcs metal belt for 100 cartridges
  • 2 pcs ammunition box for metal belt
  • for 100 cartridges
  • Bag for second barrel
  • Bag for machine gun
Packing
cal. 7.62x54
Number of machine guns in one wooden case 2
Case dimensions, mm 1330x525x350
Gross weight of the wooden case, kg 68
Volume of the wooden case, m3 0.25
