light machine guns

5.56x45 mm and 7.62x39 mm LMG-M4F

light machine guns

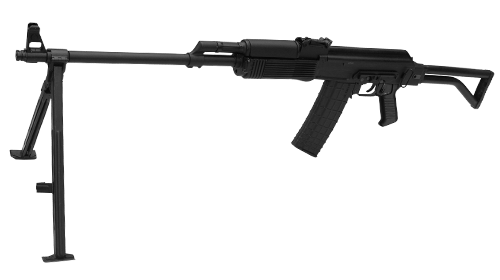

5.56x45 mm ARSENAL Light Machine Guns LMG-M4F with folding butt

NSN:1005-50-001-4409

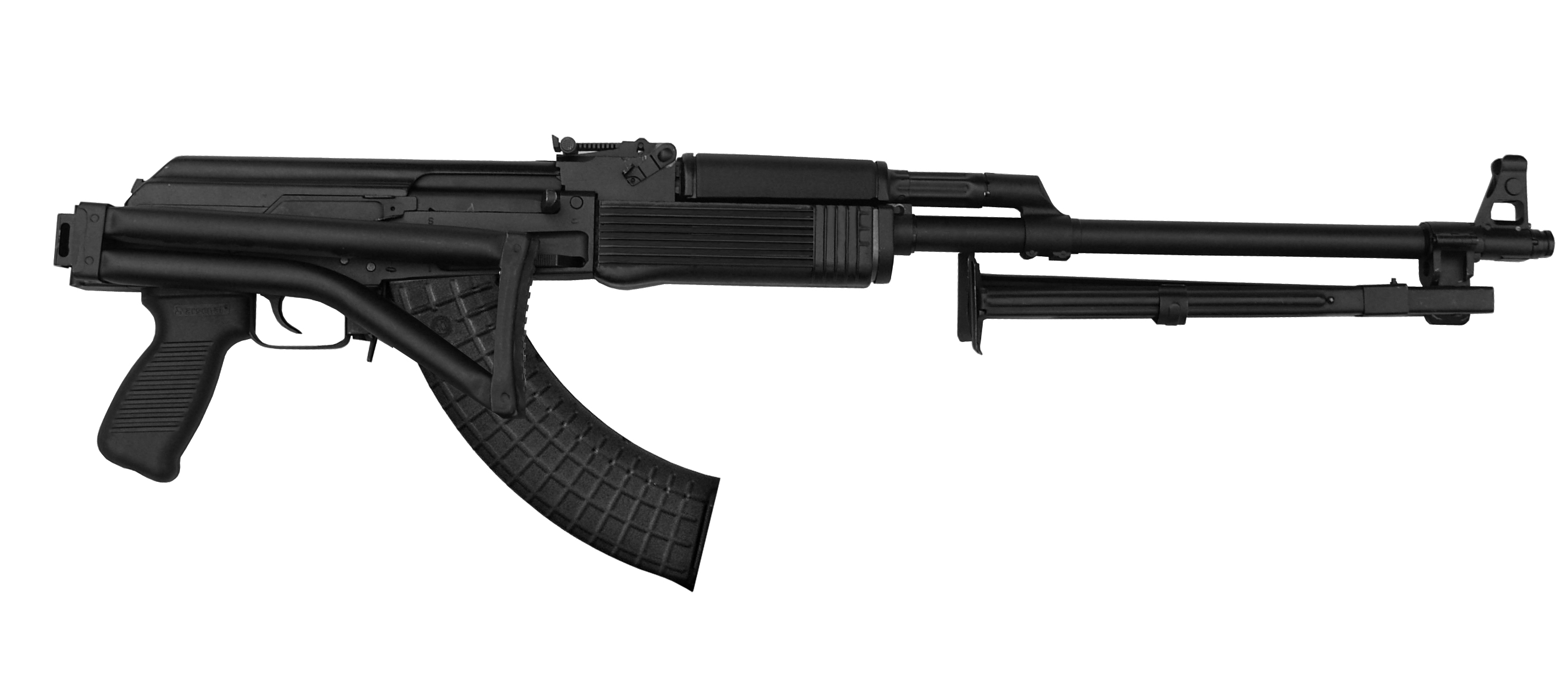

7.62x39 mm ARSENAL Light Machine Guns LMG-M4F with folding butt

NSN:1005-50-001-4820

The 5.56 mm and 7.62 mm LMG-M4F is a highly effective automatic weapons, used as armament of combat crews, reconnoitring detachments and special antiterrorist troops.

Main Features:
  • Gas operated automatic rifle.
  • Hot-die forged and milled receiver for increased durability and service life.
  • Chromium plated Barrel.
  • FRP (fiber glass reinforced polycaproamide) Lower and Upper hand guards, Pistol grip, Butt and 30-round Magazine – heat/cold resistant with antiglare matte finish.
  • Tritium Self-illuminated Night Sight (3-dot sight system), used for quick target acquisition at low-light conditions
  • Collapsible bipod.
  • Metal right-side folding butt.
  • Side mounted scope rail for dovetail based sight carriers with sighting devices.
Optional Extras (Paid Separately):
  • 30-round translucent magazines;(for 5.56x45 mm)
  • Front sight adjusting kit (in the ratio 1:10);
  • Set for magazines coupling;
  • Blank fire attachment.
Specifications
LMG-M4F LMG-M4F
Calibre,mm 5.56 7.62
Cartridge, mm 5.56x45 7.62x39
Fire mode single and automatic single and automatic
Rate of fire, rounds/min 600 600
Practical rate, rounds/min
- automatic fire
150 150
- single fire 50 50
Muzzle velocity, m/s   750
- bullet type M 193 980 -
- bullet type SS 109 930 -
Sighting range, m 1000 1000
Maximum firing range, m Up to 2000 up to 1500
Effective firing range, m up to 600 up to 500
Magazine capacity, rounds 30 40
Barrel length, mm 590 590
Sight radius, mm 550 550
Length, mm
-total
1 082 1 082
-in traveling position 837 837
Weight without magazine, kg 4.95 4.9
Weight of loaded magazine, kg 0.58 0.92
System life, rounds 20 000 20 000
Principle of function gas operated automatic
machine gun
gas operated automatic
machine gun
ACCESSORIES

Sling, Cleaning rod,

Box with accessories (brush, drift, scourer, screwdriver),
2 pcs. bags for 4 magazines,

Oil can,

8 pcs. magazines for 30 cartridges, 40 cartridges

5.56x45 mm

7.62x39 mm

Individual kit of spare parts consisting of:

-   Extractor;

-   Extractor 's spring;

-   Firing pin;

Bag for spare parts

Packing
cal. 5.56 cal. 7.62
Number of rifles
in one wooden case
6 6
Case dimensions, mm 1190x650x400 1190x650x400
Weight of the wooden case, kg 83 85
Volume of the wooden case, m3 0.31 0.31
