Light Machine Guns

5.56x45 mm and 7.62x39 mm LMG-F

Light Machine Guns

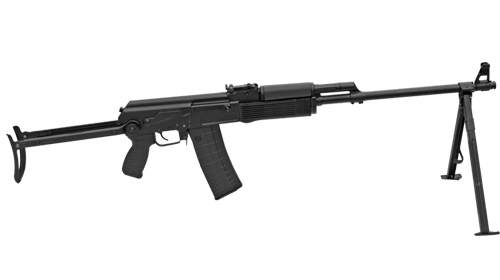

5.56x45 mm ARSENAL Light Machine Guns LMG-F with folding butt
NSN: 1005-50-000-0718

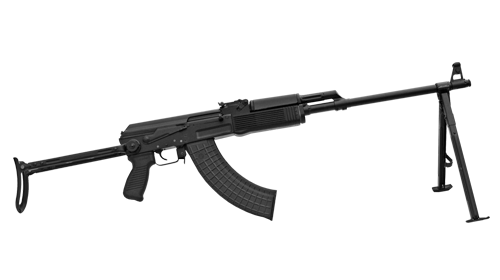

7.62x39 mm ARSENAL Light Machine Guns LMG-F with folding butt
NSN: 1005-50-000-0646

The 5.56 mm and 7.62 mm LMG-F are a highly effective automatic weapons, used as armament of combat crews, reconnoitring detachments and special antiterrorist troops.

Main Features:
  • Gas operated automatic rifle.
  • Hot-die forged and milled receiver for increased durability and service life.
  • Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material.
  • FRP (fiber glass reinforced polycaproamide) Lower and Upper hand guards, Pistol grip, Butt and 40-round Magazine – heat/cold resistant with antiglare matte finish.
  • Collapsible bipod.
  • Folding metal butt.
Optional Extras (Paid Separately):
  • Luminous spots on the sights;
  • 30-round black polymer magazine;
  • Front sight adjusting kit (in the ratio 1:10);
  • Set for magazines coupling;
  • Blank fire attachment.
Specifications
LMG-F LMG-F
Calibre,mm 5.56 7.62
Cartridge, mm 5.56x45 7.62x39
Fire mode single and automatic single and automatic
Rate of fire, rounds/min 600 600
Practical rate, rounds/min
- automatic fire
150 150
- single fire 50 50
Muzzle velocity, m/s   750
- bullet type M 193 980 -
- bullet type SS 109 930 -
Sighting range, m up to 1000 1000
Maximum firing range, m up to 2000 1500
Effective firing range, m 600 500
Magazine capacity, rounds 30 40
Barrel length, mm 590 590
Sight radius, mm 555 555
Overall length, mm
- with extended butt
1060 1060
- with folded butt in travelling position 825 825
Weight, kg:
- rifle without magazine 4.8 4.8
- 30-round loaded magazine 0.58 0.92
System life, rounds 20 000 20 000
Principle of function gas operated gas operated
ACCESSORIES
  • Cleaning rod
  • Sling
  • Oil can
  • 2 pcs. bags for 4 magazines
  • Box with accessories
  • (brush, drift, scourer (cal. 5.56)
  • slush brush (cal. 7.62), screwdriver)
  • 8 pcs. magazines for 30 cartridges (cal. 5.56)
    5.56x45 mm
  • 8 pcs. magazines for 40 cartridges (cal. 7.62)
    7.62x39 mm
  • Individual kit of spare parts consisting of:
  • Extractor;
  • Extractor’s spring;
  • Firing pin
  • Bag for spare parts
Packing
cal. 5.56 cal. 7.62
Number of rifles in one wooden case 6 6
Case dimensions, mm 1190x650x400 1190x650x400
Weight of the wooden case, kg 82 84
Volume of the wooden case, m3 0.31 0.31
