Fuzes

AF14, AF17

Fuzes

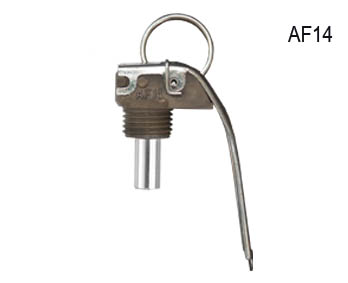

Fuzes for Hand Grenades AF14

NSN:1390-50-000-7200

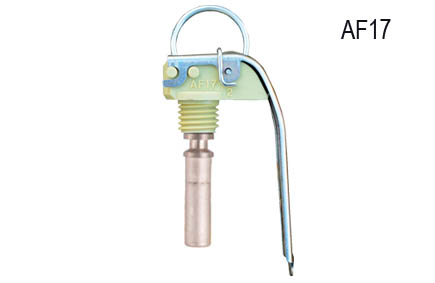

Fuzes for Hand Grenades  AF17

NSN:1330-50-001-2513

BASIC CHARACTERISTICS AF14 AF17
Type of the Grenade GH-S&F-1-01, GH-S&F-13, GH-SMK-W,
GH-SMK-O, GH-SMK-R,
GH-SMK-B,
GH-CS,
GH-CS-1
,GH-S&F-CS
GH-SMK-2-W, GH-SMK-CS
Mass of fuze, g 40 38
Thread size M20x2 Sp M15.45x13 turns in 1"
Overall dimensions, mm:
-height 85.3 85.3
-width 47 47
Time of delay, s from 1.5 to 2.3 from 2 to 4
Operational temperature range,°C from minus 43 to 52 from minus 43 to 52
Dimensions of the packing (metal box), mm Ø102, H115 Ø102, H115
Number of fuzes in one packing, pcs. 10 10
Gross weight of packing with fuzes, kg 0.58 0.54
