Fuzes

AF11, AF12, AF13,AF16

Fuzes

Fuzes for Hand Grenades

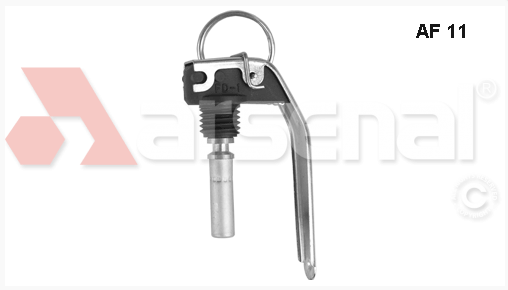

AF11
NSN:1330-50-000-7199

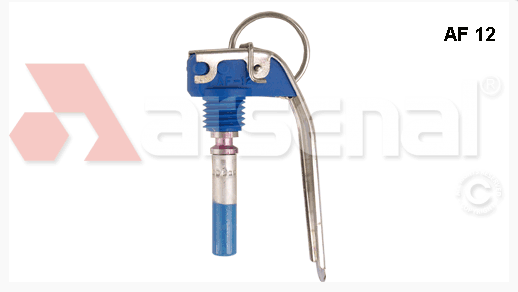

AF12

NSN:1330-50-001-0764

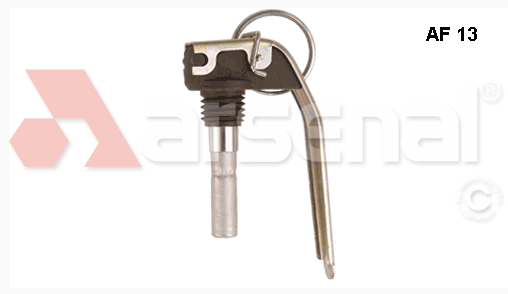

AF13

NSN:1330-50-001-0765

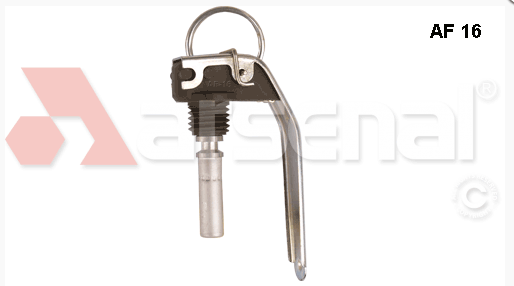

AF16

NSN:1330-50-001-2512

BASIC CHARACTERISTICS AF11 AF12 AF13
         AF16
Type of the Grenade GHO-1, GHO-2, GHD-1, GHD-2, GHTB GHO-1P, GHD-1P GHD-1, GHD-2, GHTB GHD-4
Mass of fuze, g 38 38 42 38
Thread size Sp M15.45x13
turns in 1"
Sp M15.45x13
turns in 1"
Sp M15.45x13
turns in 1"
Sp M15.45x13
turns in 1"
Overall dimensions, mm:
-height 85.3 85.3 85.3 85.3
-width 47 47 47 47
Time of delay, s from 3.2 to 4.2 from 3 to 5 from 3.2 to 5 from 4 to 5
Operational temperature range,°C from minus 43 to 52 from minus 30 to 52 from minus 43 to 52 from minus 43 to 52
Dimensions of the packing (metal box), mm  Ø102, H115  Ø102, H115  Ø102, H115
Ø102, H115
Number of fuzes in one packing, pcs. 10 10 10 10
Gross weight of packing with fuzes, kg 0.56 0.56 0.6 0.56
