Fuzes

AF32,AF34

Fuzes

Fuzes for 30 mm Rounds

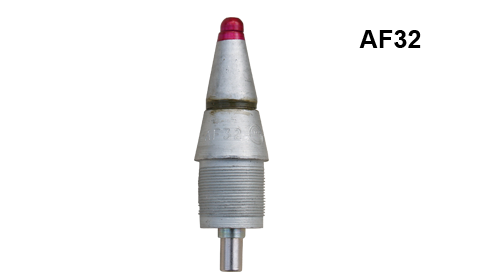

AF32(A-670 M)

NSN:1390-50-001-0762

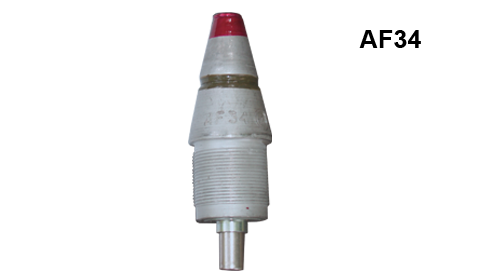

AF34

NSN:1390-50-001-1954

Point detonating, with delay action and distant arming
BASIC CHARACTERISTICS AF32 (A-670 M) AF34
Ammunition type 30x165 mm HEI,
HE-T for guns
2A38, 2A42, 2A72
30x165 mm HEI and HEI-T
for guns AK 630, AK 306
and GSh-30 type
30x165 mm HE-T for guns
GSh-30 type
Mass of fuze, g 49 47
Quantity of safety barriers 3 3
Time of self-destruction, s from 7.5 to 15 -
Sensitivity:
Duralumin sheet thickness, mm 3 3
Operational temperature range,°C from minus 50 to 50
Arming distance, m from 20 to 100 from 30 to 200
