Mortar Bombs

82 mm HE 82LD , PRACT 82LD and PRACT 82LDTM

Mortar Bombs

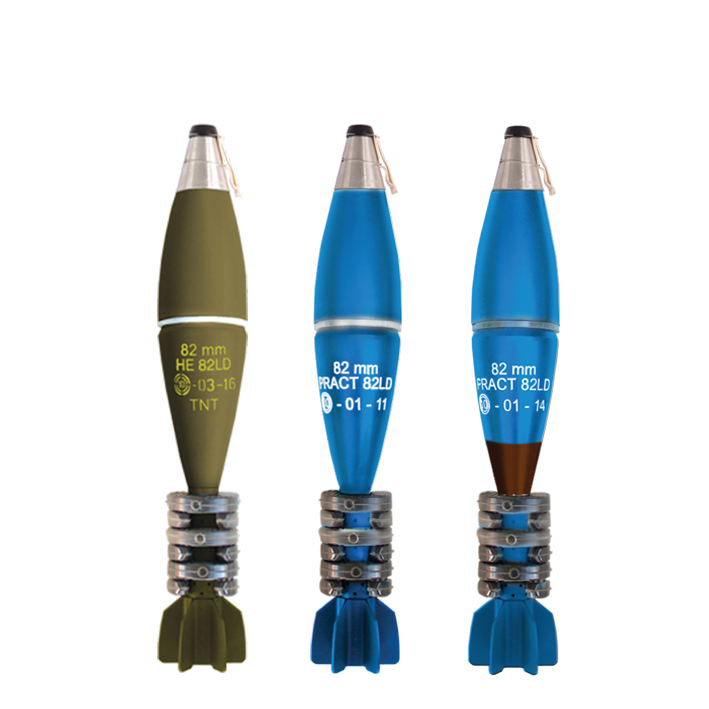

82 mm Mortar Bombs HE 82LD, PRACT 82LD and PRACT 82LDTM

HE 82LD
NSN:1315-50-001-1768
PRACT 82LD

NSN:1315-50-001-1766

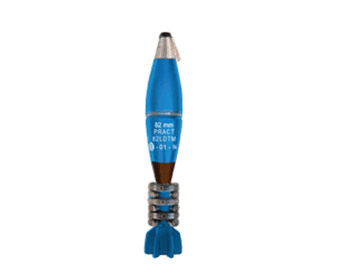

PRACT 82LDTM
NSN:1315-50-001-4761


The HE 82LD is one of the most up-to-date high explosive bombs of 81mm caliber, used for fighting uncovered enemy manpower, as well as unarmored means.

Performance: reached firing range - 6200 m; Spheroidal graphite Cast Iron Body; increased fragmentation effect approximately 1400 effective fragments; arming distance fuze AF66.

The PRACT HE 82LD is used for training purposes, their flight ballistic is identical to those of the high explosive version.


Weapon compatibility:

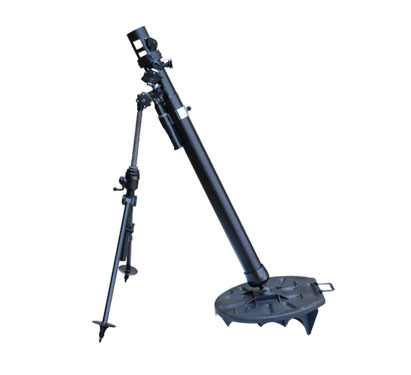

Any type smooth bore 82 mm Mortars with a barrel length not less than 1200 mm.

TECHNICAL CHARACTERISTICS
HE 82LD PRACT 82LD PRACT 82LDTM
Body material Spheroidal graphite cast iron Spheroidal graphite cast iron Spheroidal graphite cast iron
Length of fuzed Mortar Bomb, mm 496 496 496
Flight Weight of Mortar Bomb, kg 4.15 4.15 4.15
Weight of explosive charge (TNT), kg 0.75 - -
Weight of the inert charge, kg - 0.75 0.7
Weight of pyrotechnical marking
composition, kg
    0.05
Duration of smoke emission,s     10 minimum
Fuze AF66, AF62, AF64, AF621 AF66, AF62, AF64, AF621 or dummy fuze AF62, AF64, AF66, AF621
BALLISTIC DATA HE 82LD PRACT 82LD PRACT 82LDTM
Max aver. Pressure, kgf/cm2 650 650 650
Max Range, m 6200 6200 6200
Max Muzzle Velocity, m/s 315 315 315
Full variable Propellant Charge 0+6 0+6 0+6
Class of explosion hazard : 1.2E, UN 0321 with AF66 and AF621
1.1F, UN 0167 with AF62 and AF64
1.2E, UN 0321 with AF66 and AF621
1.1F, UN 0167 with AF62 and AF64
1.3C, UN 0417 with dummy fuze
1.2G, UN0015
Packing

One fuzed Mortar Bomb with 6 pcs. Increment charges is packed in a Container; 6 pcs. Containers are arranged in a wooden case.
Wooden case dimensions, mm 600x325x260
Case weight, kg 38
Case volume, m3 0.051
